The tools be designed by the sheet thickness and one set tools just for only one kind of thickness. when you have no idea how to choose, pls improvide the follow informations: Punch press model, punch die station structure, plate thickness, mold specification shape size,mold height series or outer diameter .
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Metal shear blades size is 1100*80*20mm,the blades material are Cr12Mov and 6CrW2Si,hardness:HRC52-60,
Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness. Bending step:1.bending angle first 2.flatting
This is standard press brake punch,usually the height is 65 and 67mm.the material is 42CrMo and we can make induction harden or all body heat treatment for customers. For the segments size, we can make it according to the customer's requirements. if no request , we will make 835mm standard segments size for you,100L,10,15,20,40,50,200,300,100R.
The punch can be quickly fall out from this clamp tools, it reduce the worker's time. and we can make quick clamp tools and ordinary clamp tools.
Hydraulic press brake molds standard 2v dies,V8-V12 for bending 1-1.5mm plate, the die size:835*55*26mm,90degree.the weight is 9kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle, we can make it according to your bending request.
Quick lock system of wila press brake punch can be more convenient for customers.for this quicklock system, it be provided that the weight less than 12kg, it usually be applied on segments tools and some standard length. If the weight is more than 12kg, it usually be provided safety pins, it usually be applied on whole piece tools.
The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece
The V40 die for bending 8mm plate, the die size:835*60*60mm,85degree.the weight is 20kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness.
Bending step:1.bending angle first
2.flatting
product origin:
chinabrand:
Golinshipping port:
shanghaicolor:
silverlead time:
15 days after receiving the depositpayment:
T/T, Western union

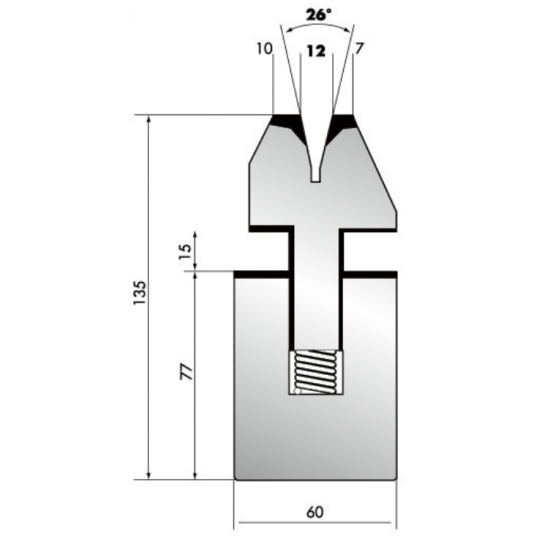

Size:835*135*60mm
Material:42CrMo
Hardness:HRC47+/-3
Package:Multi playwood
Our company specializes in the production of bending machine die into bending machine die and lower die, used for sheet metal stamping forming and separation of mold.Our company produce and sell the bending machine die, bending machine die, flanging machine, mold, hydraulic press mold, hydraulic press mold, bending machine mold, CNC bending machine section under concentric differential mode composite forming dies, CNC bending machine, etc.
SIZE:

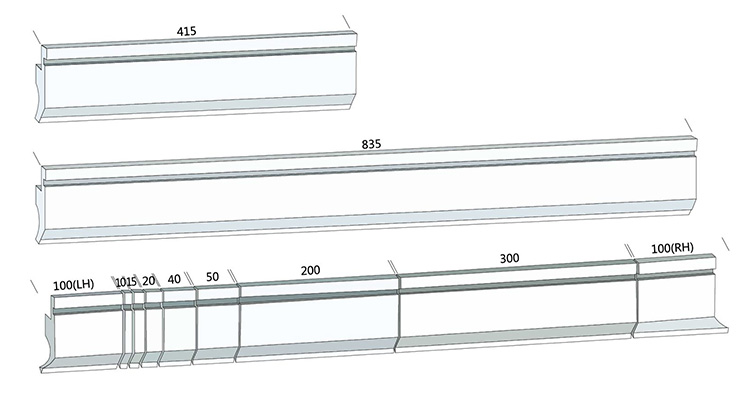

The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:
Lower model:10,15,20,40,50,100,200,400=835mm (set)
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
Standard 4v dies,V16,V22,V35,V50 with 85 degree and 88degree. the size is 60*60mm, material 42CrMo4.the weight is 15.7kg. the material is 42CrMo4, hardness is HRC47+/-3.
The stright blade size:835*97*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3,the weight is 10.5kg
V40 bend 5mm sheet metal plate,the single v die size:835*60*60mm,V40,85degree. the weight is 20kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.
The punch can be quickly fall out from this clamp tools, it reduce the worker's time. and we can make quick clamp tools and ordinary clamp tools.
V125 bend 16mm sheet metal plate,, the die size:835*154*103mm,80degree, R15.the weight is 62kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
The T-V die size:835*120*60mm,V12,30degree. the material is 42CrMo4, hardness is HRC52-58. and V6,V8,V10,V16,V20,V25 can be made according to customer's request.
Quick lock system of wila press brake punch can be more convenient for customers.for this quicklock system, it be provided that the weight less than 12kg, it usually be applied on segments tools and some standard length. If the weight is more than 12kg, it usually be provided safety pins, it usually be applied on whole piece tools.
This crowning table size is 95*90mm, single v die, self-centering 2v dies be suitable with this type. this table be with motor and we can make modification according to your machine specifications.
The V40 die for bending 8mm plate, the die size:835*60*60mm,85degree.the weight is 20kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
The self centering 2V dies, the size is 835*46*50mm,88degree,the weisght is 17kg.and we can make V5-V9,V8-V12,V12-V20,V16-V25 and other V opening according the bending thickness.
The punch size is 835*134*26mm, 30degree,standard sharp blade.the weight is 13.3kg/pcs and we can make 35degree,45degree or other degree according to your request.
The tools be designed by the sheet thickness and one set tools just for only one kind of thickness. when you have no idea how to choose, pls improvide the follow informations: Punch press model, punch die station structure, plate thickness, mold specification shape size,mold height series or outer diameter .
