press brake upper tools with 67mm height and 85degree

The punch size is 835*97*26mm, 85degree, the material is 42CrMo4,the weight is 11kg. and we can make the height is 65mm,90mm and 120mm.


  • product origin:

    Maanshan
  • brand:

    Golin
  • shipping port:

    Shanghai
  • color:

    Silver
  • lead time:

    15-20days after receiving the deposit
  • payment:

    T/T, Western union
  • Product Details

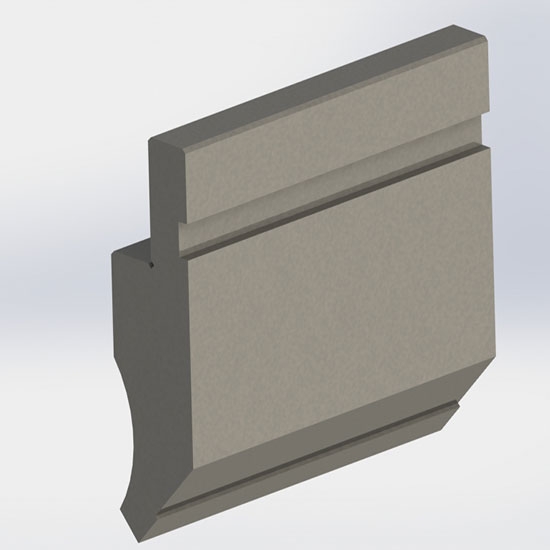

press brake upper tools with 67mm height and 85degree


Size:835*97*26mm

Material:42CrMo

Hardness:HRC47+/-3

Package:Multi playwood


Our company specializes in the production of bending machine die into bending machine die and lower die, used for sheet metal stamping forming and separation of mold.Our company produce and sell the bending machine die, bending machine die, flanging machine, mold, hydraulic press mold, hydraulic press mold, bending machine mold, CNC bending machine section under concentric differential mode composite forming dies, CNC bending machine, etc.


SIZE:


The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.

The standard segmentation size is:
Lower model:10,15,20,40,50,100,200,400=835mm (set)

FAQ

1. Q: Are you a factory or trading company? How is you factory extrusion experience?

    A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.

2. Q:Can you put my brand logo on these products?

    A:Yes we can.

3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?

    A:MOQ is 1pcs.

4. Q:When can you ship the products after we make payment?

    A:Production time is normally 15-25 days.
