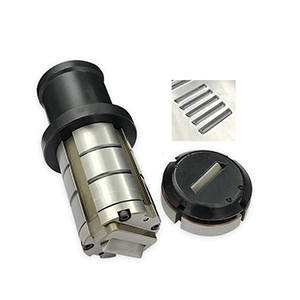

Thick turret Open louver tools forming punch tools

The tools be designed by the sheet thickness and one set tools just for only one kind of thickness. when you have no idea how to choose, pls improvide the follow informations:

Punch press model, punch die station structure, plate thickness, mold specification shape size,mold height series or outer diameter .

  • product origin:

    china
  • brand:

    Golin
  • shipping port:

    shanghai
  • color:

    silver
  • lead time:

    15 days after receiving the deposit
  • payment:

    T/T, Western union
  • Product Details

Thick turret Open louver tools forming punch tools

Material:punch-body SKH51 and die DC53

Hardness:HRC58-62

The tools life (round) is about 800000hits and (shape) is about 600000-700000hits.

Package:Multi playwood


Our company specializes in the production of bending machine die into bending machine die and lower die, used for sheet metal stamping forming and separation of mold.Our company produce and sell the bending machine die, bending machine die, flanging machine, mold, hydraulic press mold, hydraulic press mold, bending machine mold, CNC bending machine section under concentric differential mode composite forming dies, CNC bending machine, etc.


SIZE:


The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.

The standard segmentation size is:
Lower model:10,15,20,40,50,100,200,400=835mm (set)


FAQ

1. Q: Are you a factory or trading company? How is you factory extrusion experience?

    A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.

2. Q:Can you put my brand logo on these products?

    A:Yes we can.

3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?

    A:MOQ is 1pcs.

4. Q:When can you ship the products after we make payment?

    A:Production time is normally 15-25 days.
