Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3

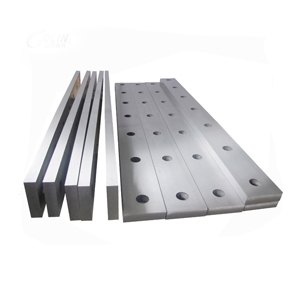

Metal shear blades size is 1100*80*20mm,
the blades material are： Cr12MoV 、H13K、6CrW2Si、9CrSi，etc.
hardness:HRC52-60.
product origin:
Maanshanbrand:
Golinshipping port:
Shanghai portcolor:
Silverlead time:
15-20 days after receiving the depositpayment:
T/T, Western union
Size: 1100*80*20mm(customizable size)
Material: Cr12MoV 、H13K、6CrW2Si、9CrSi，etc.
Hardness: HRC54-58
Quench: Full body heat treatment
Package: Multi plywood
Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type，etc. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.

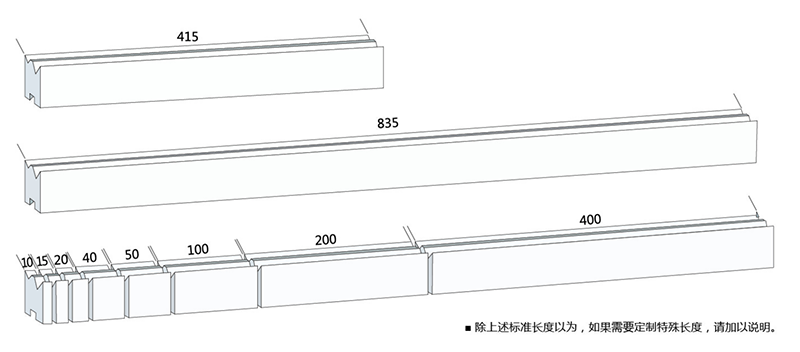

SIZE:
Golin press brake tooling's standard length is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.
Lower model:10,15,20,40,50,100,200,400=835mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
Metal shear blades size is 1100*80*20mm,the blades material are Cr12Mov and 6CrW2Si,hardness:HRC52-60,
V125 bend 16mm sheet metal plate,, the die size:835*154*103mm,80degree, R15.the weight is 62kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece
V40 bend 6.25mm sheet metal plate, t he single v die size:835*60*60mm,V50,85degree, the weight is 19kg. the material is 42CrMo4, hardness is HRC52-58.
The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
The punch size is 835*134*26mm, 30degree,standard sharp blade.the weight is 13.3kg/pcs and we can make 35degree,45degree or other degree according to your request.
The gooseneck punch size:835*197*92mm,88degree. the material is 42CrMo4, hardness is HRC47+/-3. and height 197mm,width 92mm. can be made according to customer's request.

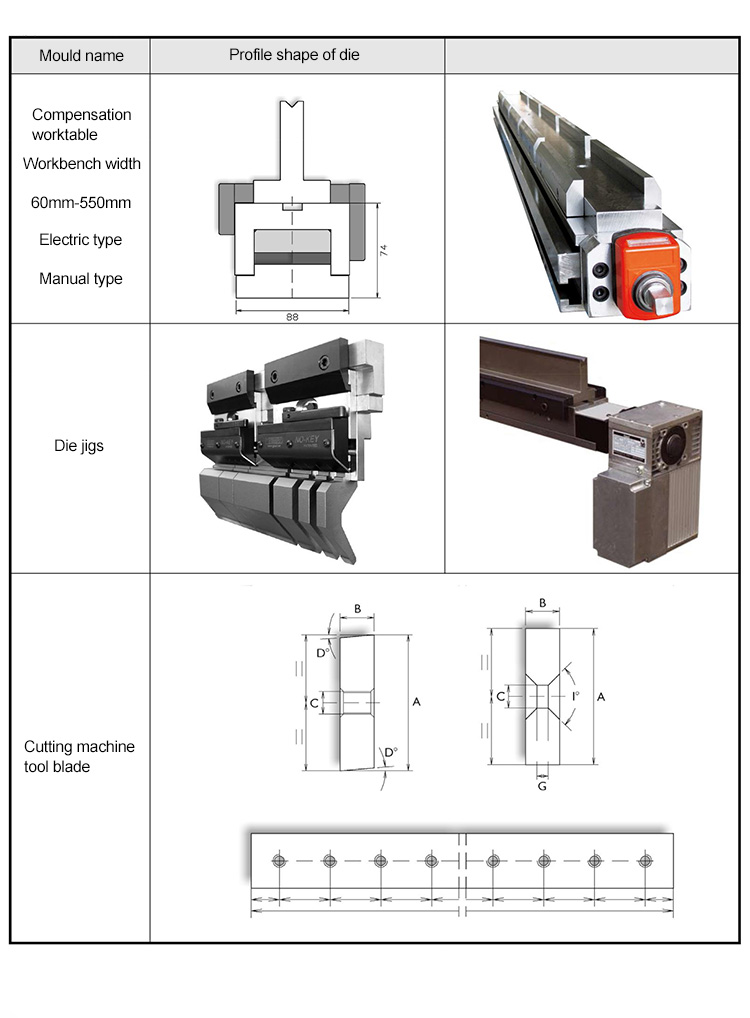

This crowning table standard size is 95*90mm, single v die or self-centering 2v dies be suitable with this type. this type crowning table be with motor and we can make modification crowning table's size according to your machine specifications.
Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles. Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent. Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs.
American style press brake tools, our customized American tools of all types. Configurable Press Brake Dies Are Up To Any Forming Need You Have !
Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
