Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The Amada press brake tooling straight blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The gooseneck punch size:835*197*92mm,88degree. the material is 42CrMo4, hardness is HRC47+/-3. and height 197mm,width 92mm. can be made according to customer's request.
The T-V die size:835*120*60mm,V12,30degree. the material is 42CrMo4, hardness is HRC52-58. and V6,V8,V10,V16,V20,V25 can be made according to customer's request.
The self centering 2V dies, the size is 835*46*50mm,88degree,the weisght is 17kg.and we can make V5-V9,V8-V12,V12-V20,V16-V25 and other V opening according the bending thickness.
LVD press brake tooling is a leading bending tool for LVD strippit press brake, we custom made a comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.
product origin:
Maanshanbrand:
Golinshipping port:
Shanghai portcolor:
Silverlead time:
15-20 days after receiving the depositpayment:
T/T, Western union

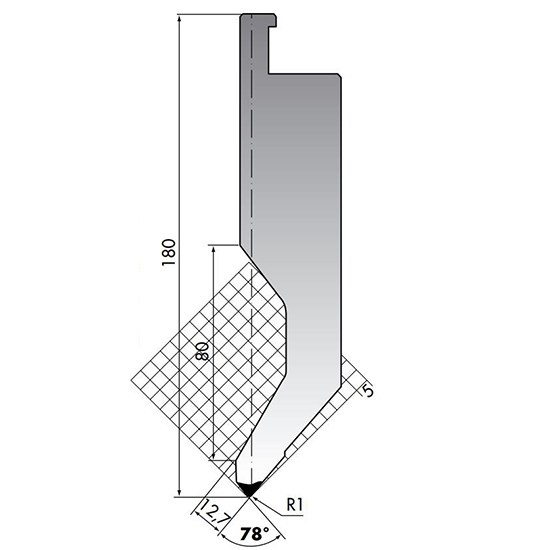

Size: 835 * 180 * 38mm(customizable size)
Material: 42CrMo / C45
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood
Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.
SIZE:
Golin LVD style press brake tooling's standard length is:
Three kinds of 550mm, 835mm and L1000mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:

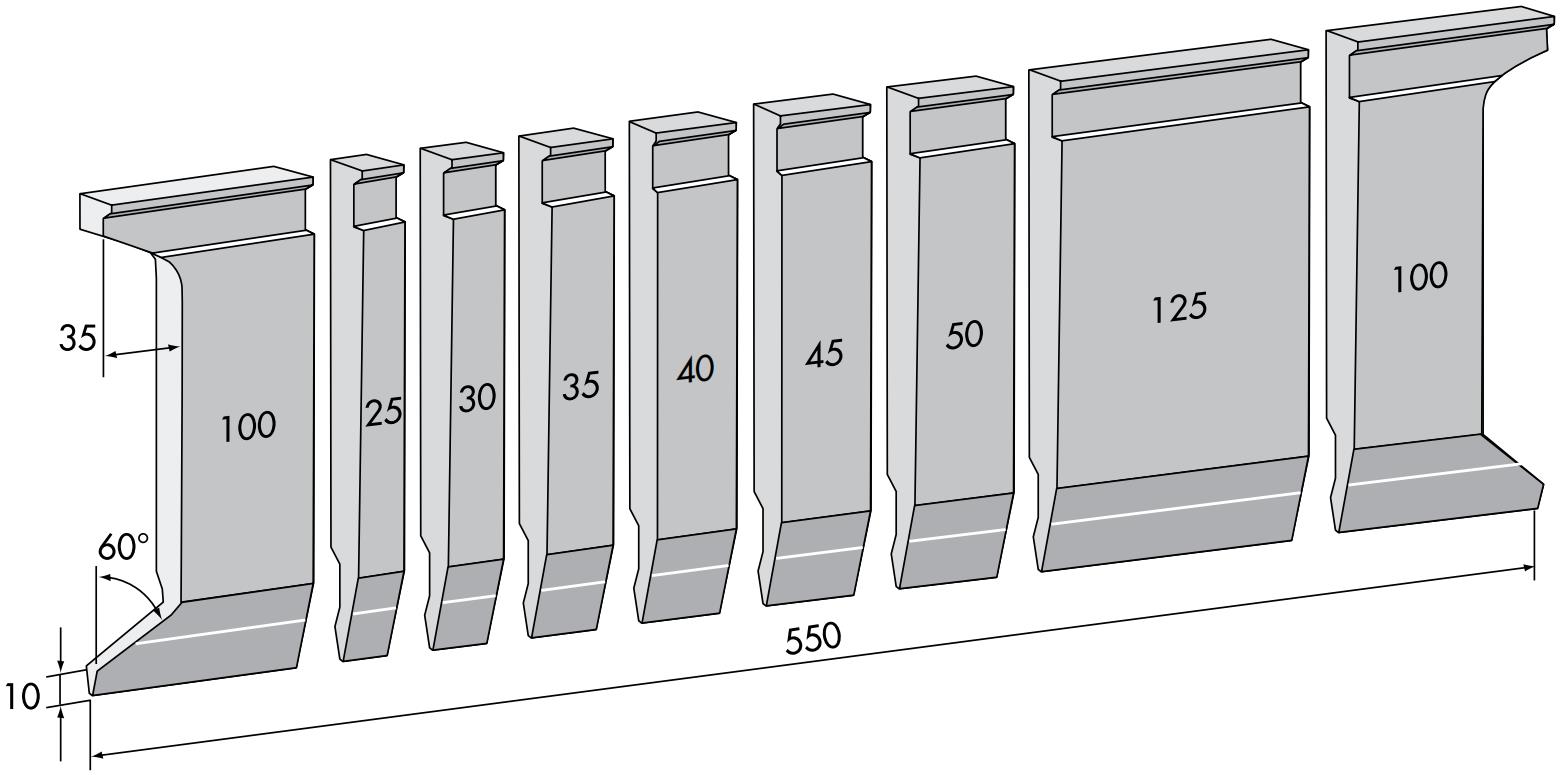

Upper die: 100 (left) , 25, 30, 35, 40, 45, 50,125, 100 (right) = 550mm (set)
Upper die: 100 (left) 10, 15, 20, 40, 50, 200, 300, 100 (right) = 835mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
LVD press brake tooling is a leading bending tool for LVD strippit press brake, we custom made a comprehensive punch and dies, and European LVD tooling. This cnc punch press tooling includes punches, dies, adapters. It supports segmented, solid length, and half-length sizes. we have a wide range of LVD press brake punch and die selections. LVD tooling can deliver a quick, easy, and flexible job with advanced designs.
V125 bend 16mm sheet metal plate,, the die size:835*154*103mm,80degree, R15.the weight is 62kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
Size:835*60*80mm(Can be customized according to customers' needs) Material:42CrMo S45C Hardness:HRC44-50 Package:Multi playwood
The stright blade size:835*97*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3,the weight is 10.5kg
The size:835*116*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3, the weight is 13kg. it can be segments with left and right ear according to the customer's requirements.
Adjustable Die System obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles. Adjustable Die System series dies help to bend sheets of various thicknesses comfortably in a single configuration. Different widths ("V" openings) can be adjusted according to the required specifications simply and quickly thanks to adjustment bars. available with different openings according to the thickness of the sheet to be bent. Movement of the moving parts in 3 ways: Shim Style system, manual system and motorized system. Except Shim Style system，the equipment is composed by 3 key parts: the structure of the die, the support structure and the adjustment bars. The support can be supplied with different tangs.
Size:835*34.5*46mm(Can be customized according to customers' needs) Material: 42CrMo / C45 Hardness: HRC47+/-3 Quench: Full body heat treatment Package: Multi plywood
V63 bend 8mm sheet metal plate, the single v die size:835*80*75mm,V63,85 degree.the weight is 29.2kg. the material is 42CrMo4, hardness is HRC52-58. and it will be used with the die holder together.
Rotary Dies Rotary dies are a great special tooling solution with numerous bending operation benefits. Because tonnage disperses with the movement of the rotating cam, the application requires less tonnage and makes bending sheet significantly easier for operators to handle. In some cases, using a rotary tool can cut labour costs in half, when more than one operator has traditionally been required, and improves safety. For cosmetic applications, rotary bending greatly decreases tonnage and part marking so sheets may require less protection and have improved finished appearance. Rotary die features: Improved safety for larger parts due to controlled material whip Material marking is reduced since tonnage is reduced on the shoulder of the die and abrasion is lessened Reduced tonnage on an application by 50% or more Potential reduction in labor needs
V32 bend 4mm sheet metal plate,the single v die size:835*60*60mm,V32,85degree. the weight is 21.6kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.
