Home Press Brake Dies

press brake 2v dies M60-90-02 with 90degree

product categories

how can we help you?

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Contact Us

new products

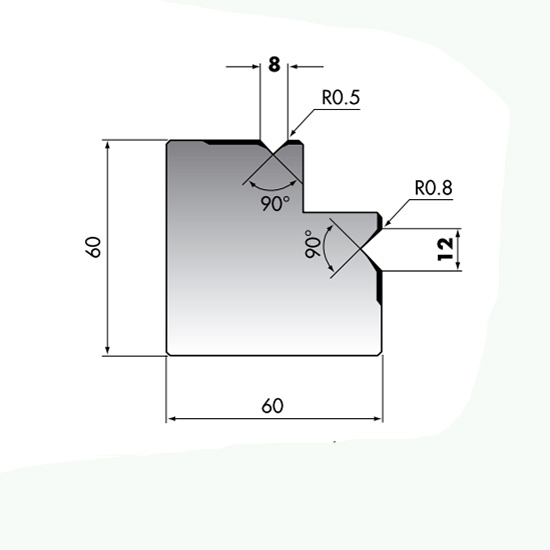

press brake 2v dies M60-90-02 with 90degree

V8 and V12 bend 1-1.5mm sheet metal plate,the square die size:835*60*60mm,V8-V12,90degree..the weight is 21kg. the material is 42CrMo4, hardness is HRC47+/-3.
  • product origin:

    Maanshan
  • brand:

    Golin
  • shipping port:

    Shanghai
  • color:

    Silver
  • lead time:

    15-20days after receiving the deposit
  • payment:

    T/T
  • Product Details

press brake 2v dies M60-90-02

Size:835*60*60mm

Material:42CrMo

Hardness:HRC47+/-3

Package:Multi playwood



Our company specializes in the production of bending machine die into bending machine die and lower die, used for sheet metal stamping forming and separation of mold.Our company produce and sell the bending machine die, bending machine die, flanging machine, mold, hydraulic press mold, hydraulic press mold, bending machine mold, CNC bending machine section under concentric differential mode composite forming dies, CNC bending machine, etc.


SIZE:


The true standard length of the national diamond press brake die is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.

The standard segmentation size is:
Lower model:10,15,20,40,50,100,200,400=835mm (set)


FAQ

1. Q: Are you a factory or trading company? How is you factory extrusion experience?

    A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.

2. Q:Can you put my brand logo on these products?

    A:Yes we can.

3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?

    A:MOQ is 1pcs.

4. Q:When can you ship the products after we make payment?

    A:Production time is normally 15-25 days.


A free consultation

You can contact us any way that is convenient for you. We are available 24/7 via fax, email or telephone.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

related products

press brake T-V die tools

press brake T-V die tools with 30degree

The T-V die size:835*120*60mm,V12,30degree. the material is 42CrMo4, hardness is HRC52-58. and V6,V8,V10,V16,V20,V25 can be made according to customer's request.

press brake self centering 2v dies

press brake self centering 2v dies with standard punch

The self centering 2V dies, the size is 835*46*50mm,88degree,the weisght is 17kg.and we can make V5-V9,V8-V12,V12-V20,V16-V25 and other V opening according the bending thickness.

press brake 4v dies

press brake 4v dies with V16,V22,V35V,V50

Standard 4v dies,V16,V22,V35,V50 with 85 degree and 88degree. the size is 60*60mm, material 42CrMo4.the weight is 15.7kg. the material is 42CrMo4, hardness is HRC47+/-3.

M60-85-32

press brake single v die M60-85-32 with V32 and 85degree

V32 bend 4mm sheet metal plate,the single v die size:835*60*60mm,V32,85degree. the weight is 21.6kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.

M60-85-40 press brake die

press brake 1v die M60-85-40 with V40

V40 bend 5mm sheet metal plate,the single v die size:835*60*60mm,V40,85degree. the weight is 20kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.

M60-85-50

press brake single vee die 50mm 85degree 60mmH M60-85-50 for sale

V40 bend 6.25mm sheet metal plate, the single v die size:835*60*60mm,V50,85degree, the weight is 19kg. the material is 42CrMo4, hardness is HRC52-58.

press brake die

1V die V63 press brake bottom die for Europe customer

V63 bend 8mm sheet metal plate, the single v die size:835*80*75mm,V63,85 degree.the weight is 29.2kg. the material is 42CrMo4, hardness is HRC52-58. and it will be used with the die holder together.

press brake lower die

Matrici 1V die V80 press brake lower die with 85 degree

V80 for bending10mm plate, the die size:835*95*80mm,85degree.the weight is 33.5kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

press brake tools

V125 press brake die tools with 80degree for sales in Finland market

V125 bend 16mm sheet metal plate,, the die size:835*154*103mm,80degree, R15.the weight is 62kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

press brake forming dies

CNC Press Brake bending machine sheet metal die

The V40 die for bending 8mm plate, the die size:835*60*60mm,85degree.the weight is 20kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.

Hydraulic press brake molds standard 2v dies

Hydraulic press brake molds standard 2v dies

Hydraulic press brake molds standard 2v dies,V8-V12 for bending 1-1.5mm plate, the die size:835*55*26mm,90degree.the weight is 9kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle, we can make it according to your bending request.

30 degree American press brake punch

30 degree American style press brake punch

The punch size is 835*134*26mm, 30degree,standard sharp blade.the weight is 13.3kg/pcs and we can make 35degree,45degree or other degree according to your request.
