Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The Amada press brake tooling straight blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The gooseneck punch size:835*197*92mm,88degree. the material is 42CrMo4, hardness is HRC47+/-3. and height 197mm,width 92mm. can be made according to customer's request.
The T-V die size:835*120*60mm,V12,30degree. the material is 42CrMo4, hardness is HRC52-58. and V6,V8,V10,V16,V20,V25 can be made according to customer's request.
The self centering 2V dies, the size is 835*46*50mm,88degree,the weisght is 17kg.and we can make V5-V9,V8-V12,V12-V20,V16-V25 and other V opening according the bending thickness.
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths.
If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
product origin:
Maanshanbrand:
Golinshipping port:
Shanghai portcolor:
Silverlead time:
15-20 days after receiving the depositpayment:
T/T, Western union
Size: 835 * 120 * 20mm(customizable size)
Material: 42CrMo
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood
Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.
SIZE:

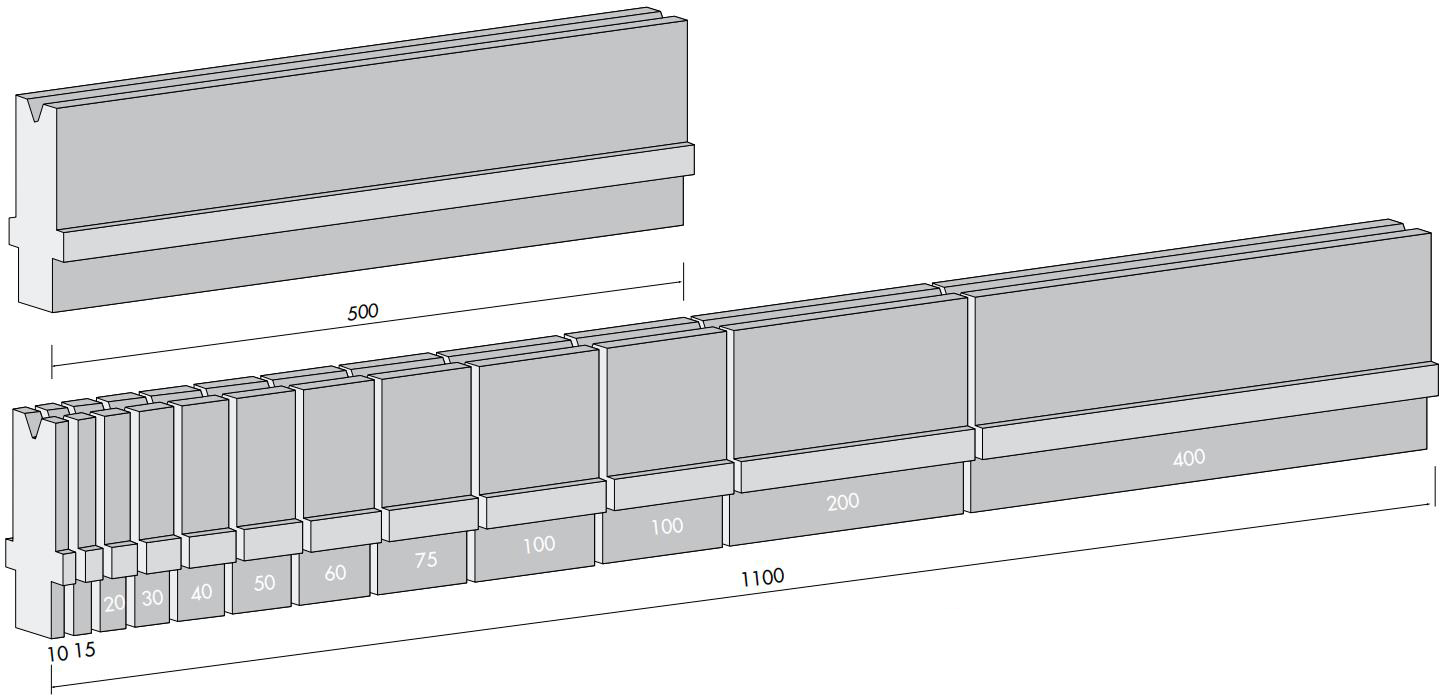

Golin Wila style press brake tooling's standard length is:
Three kinds of 500mm, 835mm and L1100mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:
Lower model:10,15,20,30,40,50,60,75,100,100,200,400=1100mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths. If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
V32 bend 4mm sheet metal plate,the single v die size:835*60*60mm,V32,85degree. the weight is 21.6kg, and it can be segment. the material is 42CrMo4, hardness is HRC52-58.
V80 for bending10mm plate, the die size:835*95*80mm,85degree.the weight is 33.5kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle and V opening, we can make it according to your bending request.
Metal shear blades size is 1100*80*20mm,the blades material are Cr12Mov and 6CrW2Si,hardness:HRC52-60,
Heavy duty press brake tools can bend very thick, high-strength materials.
The punch size is 835*134*26mm, 30degree,standard sharp blade.the weight is 13.3kg/pcs and we can make 35degree,45degree or other degree according to your request.
V8 and V12 bend 1-1.5mm sheet metal plate,the square die size:835*60*60mm,V8-V12,90degree..the weight is 21kg. the material is 42CrMo4, hardness is HRC47+/-3.
The self centering 2V dies, the size is 835*46*50mm,88degree,the weisght is 17kg.and we can make V5-V9,V8-V12,V12-V20,V16-V25 and other V opening according the bending thickness.
The gooseneck punch size:835*120*56mm,88degree. the material is 42CrMo4, hardness is HRC47+/-3. and height 120mm,105mm can be made according to customer's request.
The stright blade size:835*130*26mm,88degree. the material is 42CrMo4, hardness is HRC52-58,the weight is 12kg
The punch can be quickly fall out from this clamp tools, it reduce the worker's time. and we can make quick clamp tools and ordinary clamp tools.
835mm 4v press brake die Size: 835mm, 415mm, 835 segment mm Material: 42CrMo / C45 Hardness: HRC47+/-3 Quench: Full body heat treatment Package: Multi plywood
