Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Advantages Production in two or three strokes Reducing of marks through spring loaded hold-down-device Active components are hardened High repeatability through integrated backgauge Functional test and adjustment through test bends - with your sample sheets Suitable For Material thickness up to 4,0 mm minimum inside Ø: 2,5 mm x material thickness for steel and aluminium 3,0 mm x material thickness for stainless steel
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Press brake rolla-v dies without scratch, it's best to put the film on the workpiece surface when you bend. and we will recoomend the suitable roll-v die size for you according to the plate you bend.
Shim Style Adjustable Dies Adjustable lower dies could be considered to be one of the most versatile additions to a press brake. With this type of tool, openings can be arranged from 6.35mm to 381mm. Spacers are provided to produce the required opening. Slotted spacers allow for easy removal to change the die opening. When not in use, spacers are positioned at sides of the die block. These dies can be furnished in solid lengths or sectioned for easier handling.
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*175*40mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The stright blade size:835*145*32mm,60degree. the material is 42CrMo4, hardness is HRC47+/-3

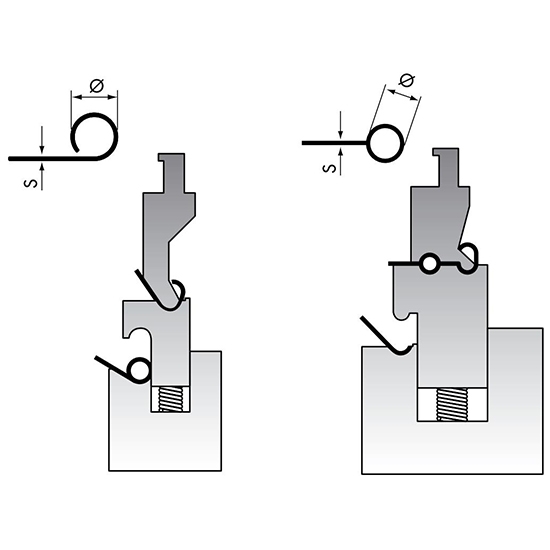

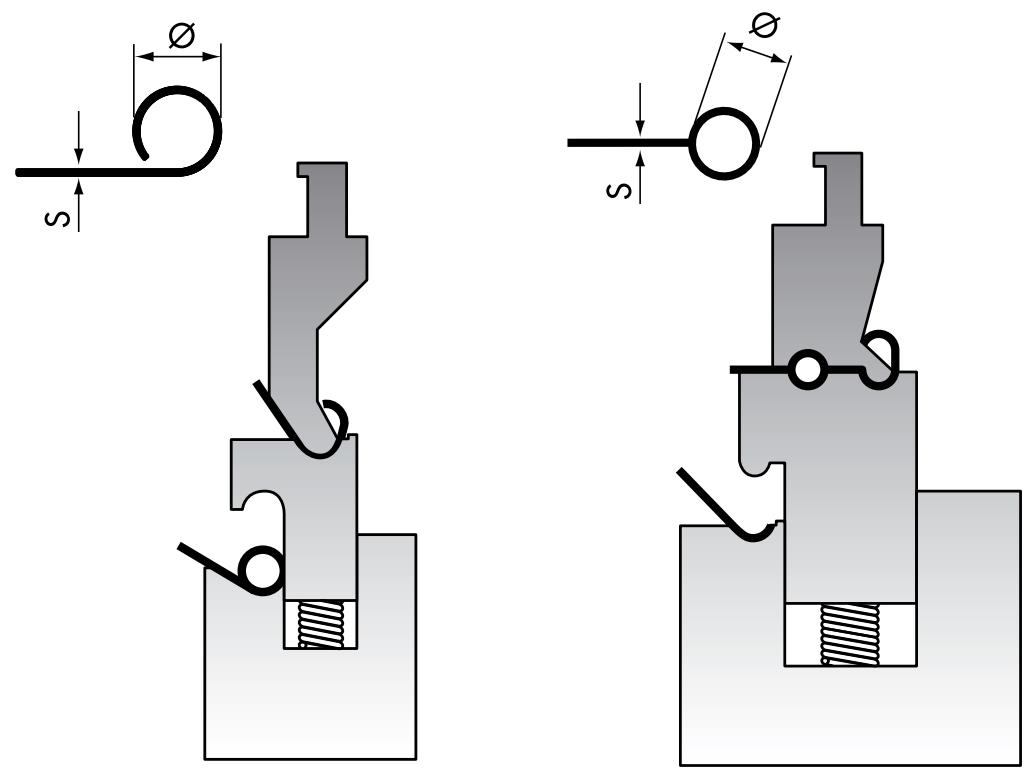

Advantages
Production in two or three strokes
Reducing of marks through spring loaded hold-down-device
Active components are hardened
High repeatability through integrated backgauge
Functional test and adjustment through test bends - with your sample sheets
Suitable For
Material thickness up to 4,0 mm
minimum inside Ø:
2,5 mm x material thickness for steel and aluminium
3,0 mm x material thickness for stainless steel
product origin:
Maanshanbrand:
Golinshipping port:
Shanghai portcolor:
Silverlead time:
15-20 days after receiving the depositpayment:
T/T, Western union
Material: 42CrMo
Hardness: HRC47+/-3
Quench: Full body heat treatment
Package: Multi plywood
Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type，etc. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.
SIZE:
Golin press brake tooling's standard length is:
Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.
The standard segmentation size is:

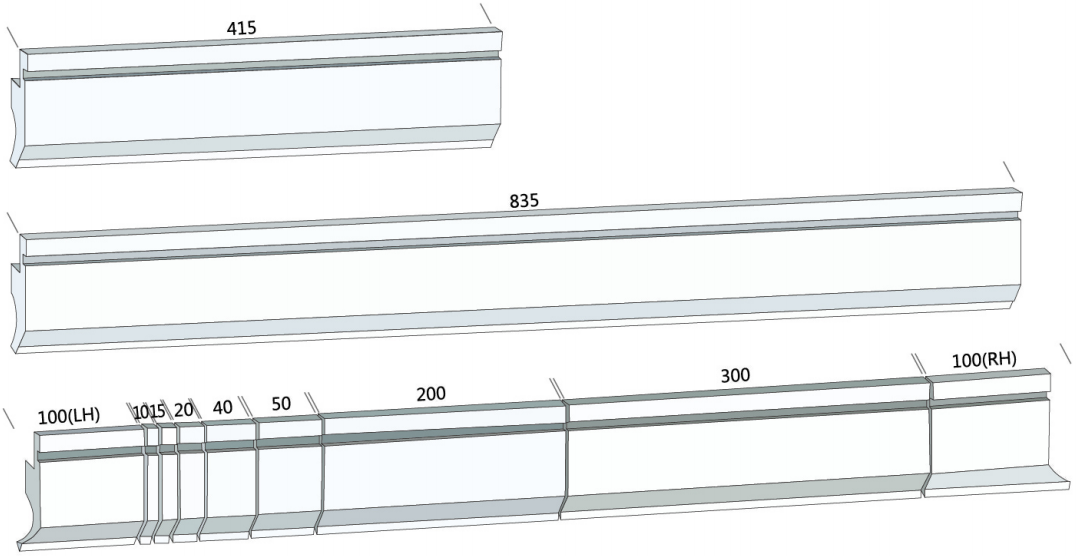

Upper die: 100 (left) 10, 15, 20, 40, 50, 200, 300, 100 (right) = 835mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.

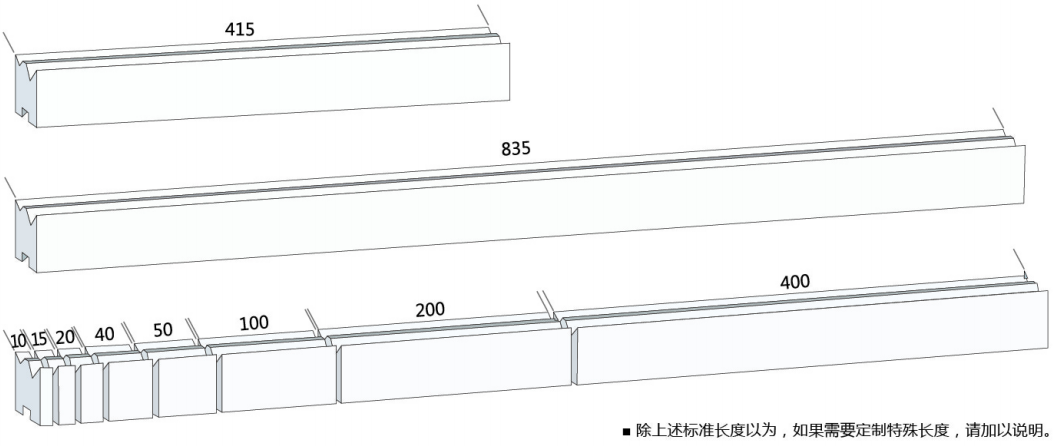

Lower model:10,15,20,40,50,100,200,400=835mm (set)
■In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory extrusion experience?
A: We are a factory. 15 years Manufacturing experience.Leading supplier in Maanshan city.
2. Q:Can you put my brand logo on these products?
A:Yes we can.
3. Q:What is the Minimum Order Quantity (MOQ) for your OEM service?
A:MOQ is 1pcs.
4. Q:When can you ship the products after we make payment?
A:Production time is normally 15-25 days.
Tonnage 150 kN/m max. Material 42Cr: 900-1150 N/mm2 Advantages - Bending of closed profiles can be produced - Large Channel Profiles can be produced - Easy Removal - Individual Production
Advantages ▶ Easy and quick bending of boxes ▶ Easy removal of the finished profile ▶ Compatible with punches/top tools ▶ Individual production possible
Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
Press brake hemming dies with spring for flatten, we can change the v opening according to the customer's bending thickness. Bending step: 1.bending angle first； 2.flatting
The stright blade size:835*146*26mm,90degree. the material is 42CrMo4, hardness is HRC47+/-3
The punch size is 835*97*26mm, 85degree, the material is 42CrMo4,the weight is 11kg. and we can make the height is 65mm,90mm and 120mm.
Also known as Z bends or Joggles, the Offset punch and die set is able to make two bends at the same time. This is the solution for applications requiring materials to be joined together or when you need to make a second bend that will not interfere with the first bend.
The tools be designed by the sheet thickness and one set tools just for only one kind of thickness. when you have no idea how to choose, pls improvide the follow informations: Punch press model, punch die station structure, plate thickness, mold specification shape size,mold height series or outer diameter .
Hydraulic press brake molds standard 2v dies,V8-V12 for bending 1-1.5mm plate, the die size:835*55*26mm,90degree.the weight is 9kg. the material is 42CrMo4, hardness is HRC47+/-3. for the angle, we can make it according to your bending request.
The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece
Bystronic Beyeler style press brake Tooling is a new tool system that maintains high quality segmented tool characteristics and increases tool holding capacity. The system is 100% compatible with the Bystronic bending database in the machine control system.
The quick locking system of the Willa press brake tool can make it easier for customers. For this quick locking system, the usable weight is less than 12kg, usually for segmented tools and some standard lengths. If the weight exceeds 12kg, a safety pin is usually provided, usually applied to the entire tool.
